User guide: configuration

Previous section introduced the features of ViSiAnnoT and it goes to show that the software is highly configurable. The configuration might not be easy for people not familiar with computer sciences. So we provide a graphical tool for creating, loading and saving configurations, that we describe in this section.

The configuration of ViSiAnnoT can be be split in seven parts: video, signal, threshold, interval, events annotation, image extraction, general. There are three ways to achieve the configuration:

  • Editing a Python script (both for ViSiAnnoT and ViSiAnnoTLongRec),

  • Editing a configuration file complying with the formatting of Configobj package (only for ViSiAnnoTLongRec),

  • Using the configuration tool that we provide, consisting in a graphical user interface (only for ViSiAnnoTLongRec).

Several examples on how to configure ViSiAnnoT and ViSiAnnoTLongRec in a script are given in the chapter User guide: ViSiAnnoT.

Editing a configuration file

Configuration files are managed with the Configobj package. See this link for details about text formatting inside the configuration file. Below we give examples that show how to configure ViSiAnnoTLongRec.

Video

See section Video visualization with multiple cameras for details about video configuration. In a Python script, it is stored in a dictionary as in the following example:

video_dict = {}
video_dict["BW1"] = ["dir/to/video", "*BW1*.mp4", '_', 0, "%Y-%m-%dT%H-%M-%S"]
video_dict["BW2"] = ["dir/to/video", "*BW2*.mp4", '_', 0, "%Y-%m-%dT%H-%M-%S"]

In the configuration file, we create a section named “Video”, composed of as much sub-sections as cameras. The name of the subsections is equivalent to the dictionary keys. Here is the equivalent video configuration:

[Video]
[[BW1]]
k0 = "dir/to/video"
k1 = "*BW1*.mp4"
k2 = '_'
k3 = 0
k4 = "%Y-%m-%dT%H-%M-%S"
[[BW2]]
k0 = "dir/to/video"
k1 = "*BW2*.mp4"
k2 = '_'
k3 = 0
k4 = "%Y-%m-%dT%H-%M-%S"

The keys k* are arbitrary. The only constraint is that they must be different inside the same (sub-)section.

Same configuration with a more compact writing:

[Video]
BW1 = ["dir/to/video", "*BW1*.mp4", '_', 0, "%Y-%m-%dT%H-%M-%S"]
BW2 = ["dir/to/video", "*BW2*.mp4", '_', 0, "%Y-%m-%dT%H-%M-%S"]

The brackets may be omitted:

[Video]
BW1 = "dir/to/video", "*BW1*.mp4", '_', 0, "%Y-%m-%dT%H-%M-%S"
BW2 = "dir/to/video", "*BW2*.mp4", '_', 0, "%Y-%m-%dT%H-%M-%S"

The drawback of the compact writing is that it loses clarity for long lists as it is not allowed to span several lines for a single key (e.g. BW1).

Signal

See section Signal visualization for details about signal configuration. In a Python script, it is stored in a dictionary as in the following example:

signal_dict = {}

signal_dict["ECG"] = [
    ["dir/to/sig", "ecg", 500, "data_*.h5", '_', 1, 'posix', None],
    [
        "dir/to/sig", "tqrs", 0, "tqrs_*.h5", '_', 0, '%Y%m%dT%H%M%S',
        {'pen': None, "symbol": '+', "symbolPen": 'r', "symbolSize": 10}
    ]
]

signal_dict["Respiration"] = [
    [
        "dir/to/sig", "resp", 62.5, "data_*.h5", '_', 1, 'posix',
        {'pen': {'color': 'm', 'width': 1}}
    ]
]

There are two signal widgets (“ECG” and “Repsiration”), with two signals in the first one and one signal in the second one. In the configuration file, we create a section named “Signal”, composed of as much sub-sections as signal widgets. Each sub-section is composed of as much sub-sub-sections as signals in the corresponding signal widget. Here is the equivalent signal configuration:

[Signal]

[[ECG]]
[[[k0]]]
k0 = 'dir/to/sig'
k1 = 'ecg'
k2 = 500
k3 = 'data_*.h5'
k4 = '_'
k5 = 1
k6 = 'posix'
k7 = None
[[[k1]]]
k0 = 'dir/to/sig'
k1 = 'tqrs'
k2 = 0
k3 = 'tqrs_*.h5'
k4 = '_'
k5 = 0
k6 = '%Y%m%dT%H%M%S'
[[[[k7]]]]
pen = None
symbol = '+'
symbolPen = 'r'
symbolSize = 10

[[Respiration]]
[[[k0]]]
k0 = 'dir/to/sig'
k1 = 'resp'
k2 = 62.5
k3 = 'data_*.h5'
k4 = '_'
k5 = 1
k6 = 'posix'
[[[[k7]]]]
[[[[[pen]]]]]
color = 'm'
width = 1

Same configuration with a more compact writing:

[Signal]
ECG = [['dir/to/sig', 'ecg', '500', 'data_*.h5', '_', 1, 'posix', None], ['dir/to/sig', 'tqrs', 0, 'tqrs_*.h5', '_', 0, '%Y%m%dT%H%M%S', {'pen': None, 'symbol': '+', 'symbolPen': 'r', 'symbolSize': 10}]]
Respiration = [['dir/to/sig', 'resp', 62.5, 'data_*.h5', '_', 1, 'posix', {'pen': {'color': 'm', 'width': 1}}]]

Threshold

See section Threshold values for details about threshold configuration. In a Python script, it is stored in a dictionary as in the following example:

threshold_dict = {}
threshold_dict["RR"] = [
    [600, (220, 0, 0)],
    [750, (178, 34, 34)]
]

In configuration file, we create a section named “Threshold”, composed of as much sub-sections as threshold values. Here is the equivalent threshold configuration:

[Threshold]
[[RR]]
[[[k0]]]
k0 = 600
k1 = [220, 0, 0]
[[[k1]]]
k0 = 750
k1 = [178, 34, 34]

Same configuration with a more compact writing:

[Threshold]
[[RR]]
key_0 = [600, [220, 0, 0]]
key_1 = [750, [178, 34, 34]]

Interval

See section Temporal intervals for details about interval configuration. In a Python script, it is stored in a dictionary as in the following example:

interval_dict = {}
interval_dict["ECG"] = [
    ["dir/to/interval", "", 500, "I0_*.txt", '_', '0', '%Y%m%dT%H%M%S', (0, 255, 0, 50)],
    ["dir/to/interval", "", 500, "I1_*.txt", '_', '0', '%Y%m%dT%H%M%S', (255, 200, 0, 50)]
]

Intervals must be plotted only the signal widget “ECG” with two interval types. In the configuration file, we create a section named “Interval”, composed of as much sub-sections as signal widgets on which to plot intervals. Each sub-section is composed of as much sub-sub-sections as interval types to plot on the corresponding signal widget. Here is the equivalent interval configuration:

[Interval]
[[ECG]]
[[[k0]]]
k0 = "path/to/interval.txt"
k1 = ''
k2 = "I0_*.txt"
k3 = 500
k4 = '_'
k5 = 0
k6 = '%Y%m%dT%H%M%S'
k7 = [0, 255, 0, 50]
[[[k1]]]
k0 = "path/to/intervalbis.txt"
k1 = ''
k2 = "I1_*.txt"
k3 = 500
k4 = '_'
k5 = 0
k6 = '%Y%m%dT%H%M%S'
k7 = [255, 200, 0, 50]

Same configuration with a more compact writing:

[Interval]
ECG = [["dir/to/interval", "", 500, "I0_*.txt", '_', '0', '%Y%m%dT%H%M%S', [0, 255, 0, 50]], ["dir/to/interval", "", 500, "I1_*.txt", '_', '0', '%Y%m%dT%H%M%S', [255, 200, 0, 50]]]

Events annotation

See section Events annotation tool for details about events annotation configuration. In a Python script, it is stored in a dictionary as in the following example:

annotevent_dict = {}
annotevent_dict["Label-1"] = [200, 105, 0, 50]
annotevent_dict["Label-2"] = [105, 205, 0, 50]

In the configuration file, we create a section named “AnnotEvent”, composed of as much sub-sections as labels. Here is the equivalent events annotation configuration:

[AnnotEvent]
[[Label-1]]
k0 = 200
k1 = 105
k2 = 0
k3 = 50
[[Label-2]]
k0 = 105
k1 = 205
k2 = 0
k3 = 50

Same configuration with a more compact writing:

[AnnotEvent]
Label-1 = [200, 105, 0, 50]
Label-2 = [105, 205, 0, 50]

Image extraction

See section Image extraction tool for details about image extraction configuration. In a Python script, it is stored in a list as in the following example:

annotimage_list = ["Label-A", "Label-B", "Label-C"]

In the configuration file, we create a section named “AnnotImage”:

[AnnotImage]
k0 = Label-A
k1 = Label-B
k2 = Label-C

We must keep the dictionary structure because of the structure of the class Configuration. Nevertheless, it is converted to a list inside ViSiAnnoT.

General

In a Python script, the general configuration is specified with the keyword arguments of ViSiAnnoTLongRec and ViSiAnnoT. In the configuration file, we create a section named “General” as in the following example:

[General]
flag_synchro = False
flag_pause_status = True
layout_mode = 3
zoom_factor = 2
down_freq = 500.0
max_points = 5000
nb_ticks = 10
ticks_size = 8
font_size = 8
font_size_title = 8
nb_table_annot = 10
time_zone = 'Europe/Paris'
annot_dir_base = 'Annotations'
ticks_offset = 5
font_name = 'Times'
trunc_duration = [0, 0]
from_cursor_list = [[0, 30], [1, 0]]
ticks_color = [93, 91, 89]
font_color = [0, 0, 0]
bg_color = [244, 244, 244]
bg_color_plot = [255, 255, 255]
height_widget_signal = 150

If a key is not specified in the configuration file, then the keyword argument takes the default value.

Code samples

The code sample below shows how to launch ViSiAnnoT directly from a configuration file:

from visiannot.visiannot import ViSiAnnoTLongRecFromConfigFile

win_visiannot = ViSiAnnoTLongRecFromConfigFile("config.ini")

Let us assume that we need to apply the same configuration file to several recordings. Each recording is stored in a specific directory. For example, we have the following treeview for storing the data:

  • REC_2020-01-01T00-00-00

    • vid_2020-01-01T00-00-00.mp4

    • vid_2020-01-01T00-15-00.mp4

    • vid_2020-01-01T00-30-00.mp4

    • sig_2020-01-01T00-05-30.txt

    • sig_2020-01-01T00-15-30.txt

    • sig_2020-01-01T00-20-30.txt

    • sig_2020-01-01T00-25-30.txt

    • sig_2020-01-01T00-30-30.txt

  • REC_2020-03-15T10-00-00

    • vid_2020-03-15T10-00-00.mp4

    • vid_2020-03-15T10-15-00.mp4

    • vid_2020-03-15T10-30-00.mp4

    • sig_2020-03-15T10-05-30.txt

    • sig_2020-03-15T10-15-30.txt

    • sig_2020-03-15T10-20-30.txt

    • sig_2020-03-15T10-25-30.txt

    • sig_2020-03-15T10-30-30.txt

We have two recordings with one camera and one signal, not synchronized with each other. In the configuration file, the only difference between the two recordings is the directory where to find data files. So we create a configuration file, named “config.ini”, without this information:

[Video]
vid = ['', "vid_*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"]

[Signal]
sig = [['', '', 100, 'sig_*.txt', '_', 1, "%Y-%m-%dT%H-%M-%S", None]]

[General]
flag_synchro = False
data_dir_base = "data"

In the “General” section, the variable data_dir_base is the parent directory where are stored all recordings directories. It is not part of the general configuration of ViSiAnnoT, so it is required to remove it from the general configuration dictionary before launching ViSiAnnoT.

In a Python script, we ask the user for the recording folder and then we fill this information in the video and signal configuration dictionaries:

from visiannot.visiannot import ViSiAnnoTLongRecFromConfigFile
from PyQt5.QtWidgets import QFileDialog
from visiannot.configuration import ConfigurationWindow
from visiannot.tools.ToolsPyQt import initializeDisplay

# get configuration
config_dict = ConfigurationWindow.loadConfigFile(
    "config.ini"
)

# select recording folder
app = initializeDisplay()
dir_data = QFileDialog.getExistingDirectory(
    None, 'Select data directory', config_dict["General"]["data_dir_base"],
    QFileDialog.ShowDirsOnly
)
app.quit()

if dir_data == "":
    print("No input directory specified => exit")
    from sys import exit
    exit()

# set configuration dictionaries
for value_list in config_dict["Video"].values():
    value_list[0] = dir_data

for value_list_list in config_dict["Signal"].values():
    for value_list in value_list_list:
        value_list[0] = dir_data

# remove data_dir_base from general configuration dictionary
del config_dict["General"]["data_dir_base"]

# launch ViSiAnnoT
win_visiannot = ViSiAnnoTLongRecFromConfigFile(config_dict)

Configuration with the graphical user interface

This configuration tool only manages long recordings (see section Management of long recording) and is composed of six parts: video, signal, events annotation, image extraction, general and configuration file management. On the one hand, the user sets up manually the configuration by filling in the fields in the window. On the other hand, the tool can automatically convert the values filled in the window to a configuration file complying with the Configobj package. It also handles the inverse operation, so that the user can save and load custom configurations.

Video

The video configuration is contained in the first group box named “Video”.

The user must click on the push button “Add” in order to create a new video configuration, corresponding to a new camera. Once a video configuration is added, there are 5 fields to fill in:

  • Directory where to find the video files,

  • Pattern to find the video files,

  • Delimiter to get the beginning datetime in the video file name,

  • Position of the beginning datetime in the video file name, according to the delimiter,

  • Format of the beginning datetime in the video file name ("posix" or format compliant with datetime, see https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes).

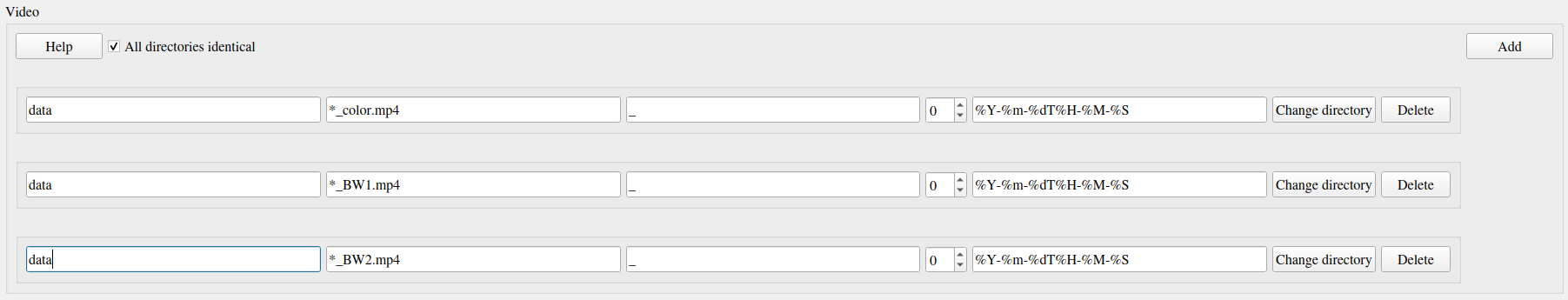

Fig. 18 shows an example of video configuration with three cameras that would give a display similar to Fig. 2.

_images/configuration_video.png

Fig. 18 Example of video configuration

The “Help” push buttons displays a window with a description of each field.

Signal

The signal configuration is contained in the second group box named “Signal”.

The user must click on the push button “Add” in order to create a new signal configuration. Then, in order to have multiple signals on the same plot, he must click on the push button “Add sub” located next to the signal configuration. Once a signal configuration is added, there are 9 fields to fill in:

  • Signal widget ID (used as the Y axis label on the plot)

  • Directory where to find the signal files,

  • Key to access the data in the file (in case of .h5 or .mat, set it to '' otherwise), also used a legend,

  • Signal frequency (may also be a string with path to the frequency attribute in case of h5 file), set it to 0 in case of non-regularly sampled signal,

  • Pattern to find the signal files,

  • Delimiter to get the beginning datetime in the signal file name,

  • Position of the beginning datetime in the signal file name, according to the delimiter,

  • Format of the beginning datetime in the signal file name ("posix" or format compliant with datetime, see https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes),

  • Dictionary with plot style.

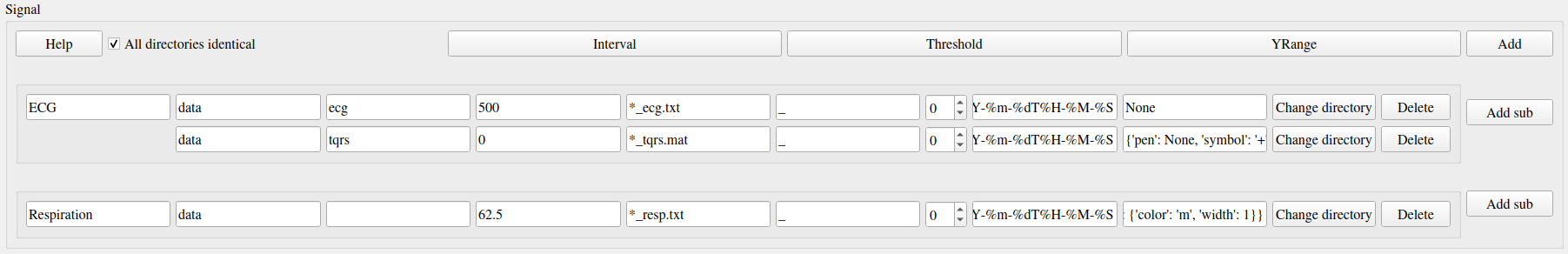

Fig. 19 shows an example of signal configuration with two plots and three signals. The first widget (resp. second one) contains two signals plots (resp. one signal plot) and would give a display similar to Fig. 3 and Fig. 5.

_images/configuration_signal.png

Fig. 19 Example of signal configuration

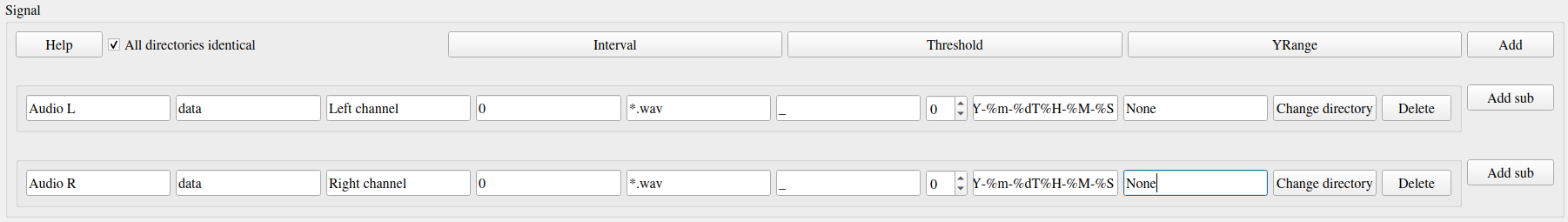

Fig. 20 shows an example of audio signal configuration with a plot for each channel. The first plot (resp. second one) contains the left channel (resp. right channel).

_images/configuration_audio.png

Fig. 20 Example of audio signal configuration

Threshold

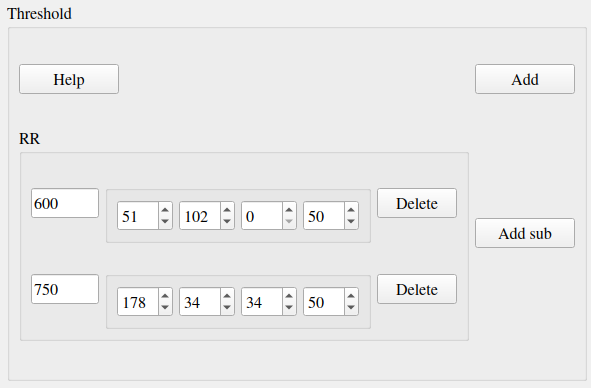

The user can manage the threshold configuration by clicking on the push button “Threshold” located above the signal configuration. This opens a new window illustrated in figure Fig. 21. The push button “Add” allows to add a threshold configuration that is automatically linked to an existing signal configuration thanks to the signal widget ID. Several thresholds can be added to one signal widget with the push button “Add sub”.

_images/configuration_threshold.png

Fig. 21 Example of threshold configuration

Once a threshold configuration is added, there are 2 fields to fill in:

  • Value of the threshold,

  • Color of the threshold line (RGBA).

If we combine this threshold configuration with the second signal configuration of Fig. 19, this would give a display similar to Fig. 6.

Interval

Similarly to the threshold configuration, the user can manage the interval configuration by clicking on the push button “Interval” located above the signal configurations. This opens a new window, illustrated in figure Fig. 22.

Once an interval configuration is added, there are 8 fields to fill in:

  • Directory where to find the intervals files,

  • Key to access the data in the file (in case of .h5 or .mat, set it to '' otherwise),

  • Frequency (in case of a time series, may also be a string with path to the frequency attribute in case of h5 file),

  • Pattern to find the intervals files,

  • Delimiter to get the beginning datetime in the signal file name,

  • Position of the beginning datetime in the signal file name, according to the delimiter,

  • Format of the beginning datetime in the signal file name ("posix" or format compliant with datetime, see https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes),

  • Color of the interval (RGBA).

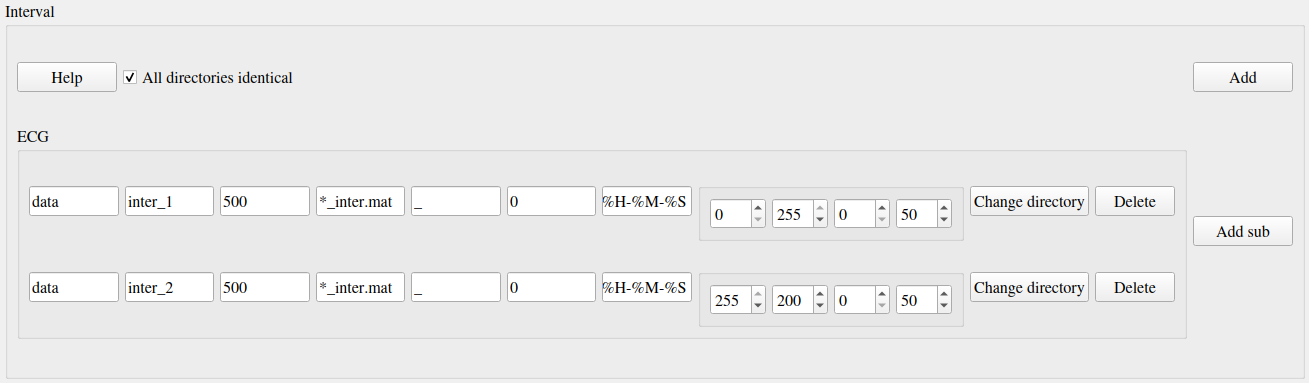

_images/configuration_intervals.png

Fig. 22 Example of intervals configuration

If we combine this interval configuration with the first signal configuration in Fig. 19, this would give a display similar to figure Fig. 7.

Events annotation

The events annotation configuration is contained in the third group box named “AnnotEvent”. Figure Fig. 23 shows an example.

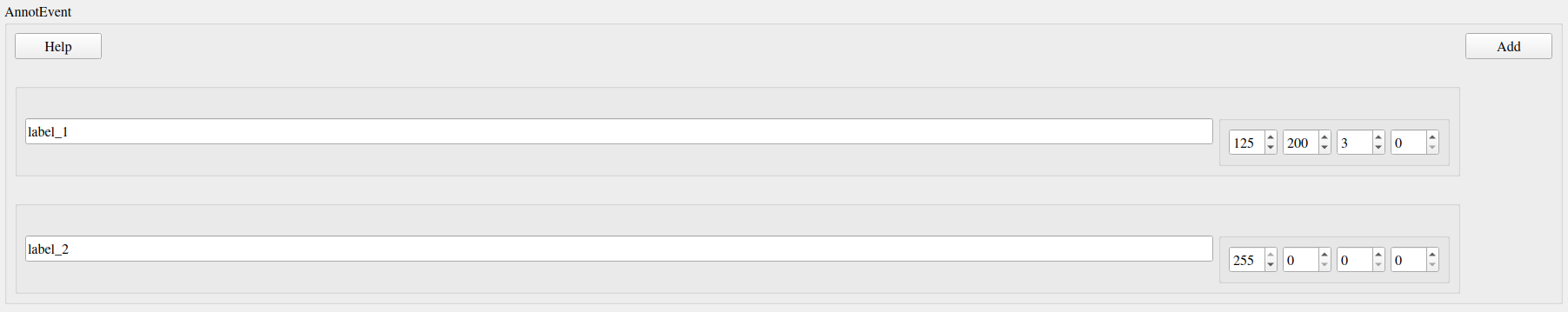

_images/configuration_annotevent.png

Fig. 23 Screenshot of the event annotation configuration

The user must click on the push button “Add” in order to create a new annotation configuration, corresponding to a new label. Once an annotation configuration is added, there are two fields to fill in:

  • Annotation label

  • Color for plotting

Image extraction

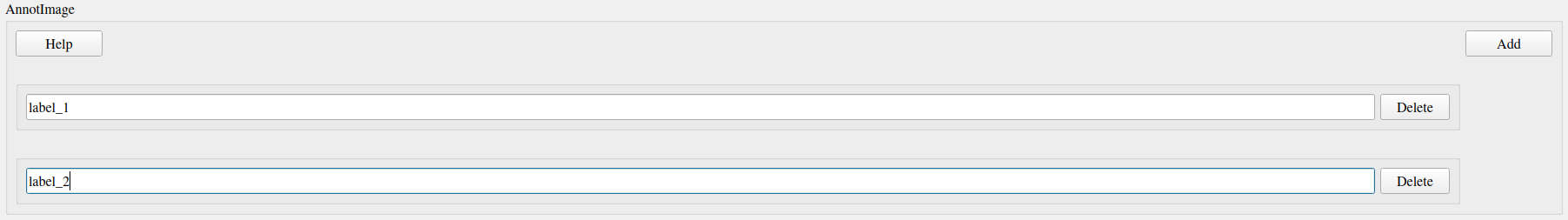

The image extraction configuration is contained in the fourth group box named “AnnotImage”. Figure Fig. 24 shows an example.

_images/configuration_annotimage.png

Fig. 24 Screenshot of the image annotation configuration

The user must click on the push button “Add” in order to create a new annotation configuration, corresponding to a new label. Once an annotation configuration is added, there is one field to fill in: annotation label.

General

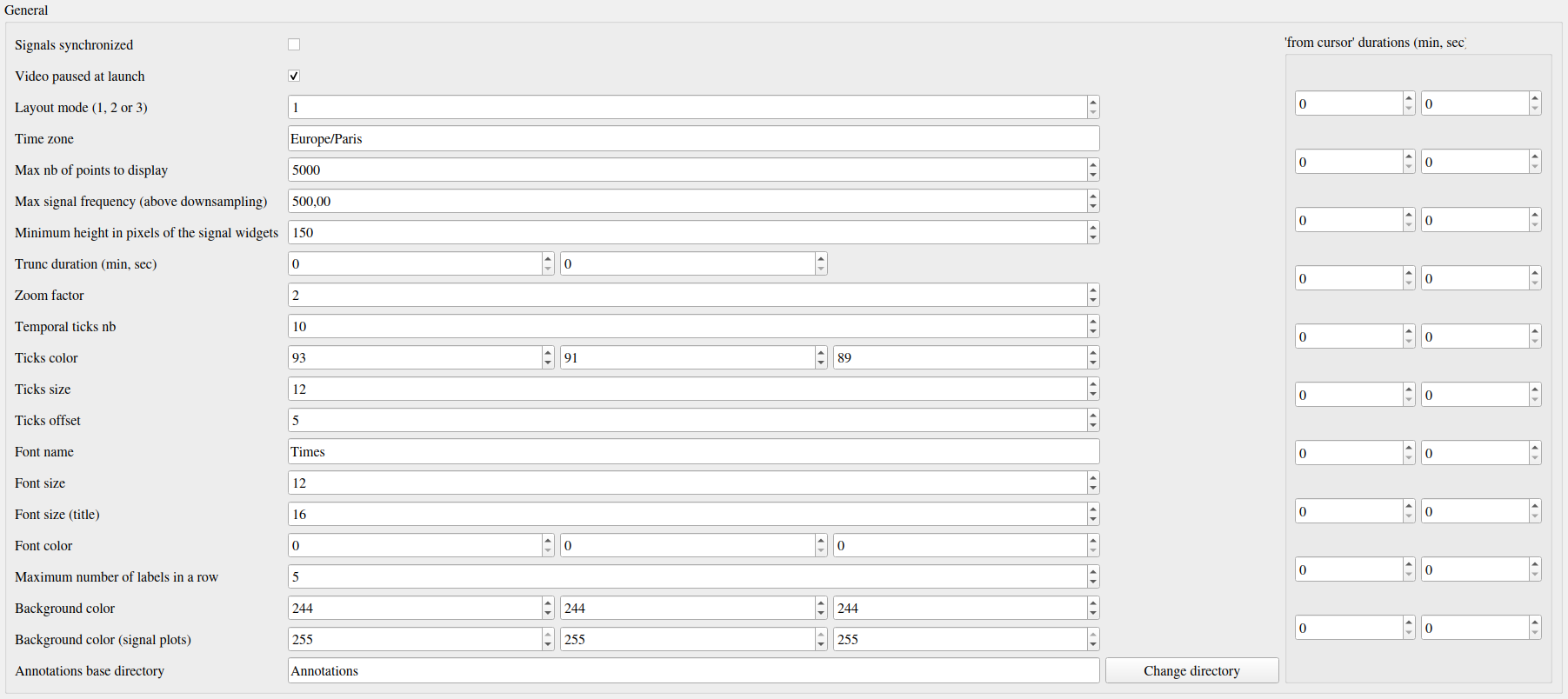

The general configuration is contained in the fifth group box named “General”. Figure Fig. 25 shows an example with default values.

_images/configuration_general.png

Fig. 25 Screenshot of the general configuration

The “Signals synchronized” check box specifies if the the signals are synchronized with video or synchronized with each other if there is no video.

The “Video paused to launch” check box specifies if the video must be in pause mode when launching the software.

The “Layout mode” spin box specifies the layout mode (see Fig. 8).

The “Time zone” line edit specifies the time zone that is used for date-time comparison.

The “Max nb of points to display” spin box specifies the maximum number of signal samples that are plotted. For a given temporal range, if the number of signal samples contained in this range is above the maximum number, then we simply skip samples so that we reach the maximum number.

The “Max signal frequency” spin box specifies the maximum signal frequency allowed. If the frequency is above, then the signal is downsampled to the specified maximum frequency.

The “Minimum height in pixels of the signal widgets” spin box specifies the vertical size of the signal widgets in the scroll area in case it exceeds the size of the window.

The “Trunc duration” spin boxes specifies the truncation duration (see section Tools for fast navigation).

The “Zoom factor” spin box specifies the zoom factor when zooming in/out around the temporal cursor.

The “Temporal ticks nb” spin box specifies the number of ticks on the X axis of the signal plots.

The “Ticks color” spin boxes specify the color of the ticks.

The “Ticks size” spin box specifies the font size of the ticks text.

The “Ticks offset” spin box specifies the space in pixels between the ticks and the associated text.

The “Font name” line edit specifies the font of the text in ViSiAnnoT.

The “Font size” spin box specifies the font size.

The “Font size” spin box specifies the font size for the title of the video widgets and the progression bar widget.

The “Font color” spin boxes specify the font color.

The “Maximum number of labels in a row” spin box specifies the maximum number of labels to put in a row in the widgets of event annotation and image annotation.

The “Background color” spin boxes specify the background color of ViSiAnnoT window.

The “Background color (signal plot)” spin boxes specify the background color of ViSiAnnoT plots.

The “Annotations base directory” line edit specifies the base directory where to save the annotations (both events and image extraction). A sub-directory is automatically created with the recording name (i.e. the name of the folder containing the video files). So the base directory can be the same for several recordings.

The “from cursor durations” spin boxes table specifies the list of temporal range durations for defining a new temporal range beginning at the current temporal cursor (see section Tools for fast navigation).

Code samples

The code sample below shows how to launch the configuration GUI and then launch ViSiAnnoT:

from visiannot.visiannot import ViSiAnnoTLongRecFromConfigGUI

win_visiannot = ViSiAnnoTLongRecFromConfigGUI()

It is also possible to only launch the configuration GUI in order to save configuration files and load them afterwards with ViSiAnnoTLongRecFromConfigFile:

from visiannot.configuration import ConfigurationWindow

win_config = ConfigurationWindow()

In case it is needed to launch ViSiAnnoT from a configuration dictionary inside a script, ViSiAnnoTLongRecFromConfigFile may be used as well:

from visiannot.visiannot import ViSiAnnoTLongRecFromConfigFile

config_dict = {}
config_dict["Video"] = {"cam_1": ["dir/to/vid", "*.mp4"]}
config_dict["General"] = {"annot_dir_base": "dir/to/annot"}

win_visiannot = ViSiAnnoTLongRecFromConfigFile(config_dict)
