User guide: configuration

Previous section introduced the features of ViSiAnnoT and it goes to show that the software is highly configurable. The configuration might not be easy for people not familiar with computer sciences. So we provide a graphical tool for creating, loading and saving configurations, that we describe in this section.

The configuration of ViSiAnnoT can be be split in seven parts: video, signal, threshold, interval, events annotation, image extraction, general. There are three ways to achieve the configuration:

  • Editing a Python script (both for ViSiAnnoT and ViSiAnnoTLongRec),

  • Editing a configuration file complying with the formatting of Configobj package (only for ViSiAnnoTLongRec),

  • Using the configuration tool that we provide, consisting in a graphical user interface (only for ViSiAnnoTLongRec).

Several examples on how to configure ViSiAnnoT and ViSiAnnoTLongRec in a script are given in the chapter User guide: ViSiAnnoT.

Editing a configuration file

Configuration files are managed with the Configobj package. See this link for details about text formatting inside the configuration file. Below we give examples that show how to configure ViSiAnnoTLongRec.

Video

See section Video visualization with multiple cameras for details about video configuration. In a Python script, it is stored in a dictionary as in the following example:

video_dict = {}
video_dict["BW1"] = ["dir/to/video", "*BW1*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"]
video_dict["BW2"] = ["dir/to/video", "*BW2*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"]

In the configuration file, we create a section named “Video”, composed of as much sub-sections as cameras. The name of the subsections is equivalent to the dictionary keys. Here is the equivalent video configuration:

[Video]
[[BW1]]
k0 = "dir/to/video"
k1 = "*BW1*.mp4"
k2 = '_'
k3 = 1
k4 = "%Y-%m-%dT%H-%M-%S"
[[BW2]]
k0 = "dir/to/video"
k1 = "*BW2*.mp4"
k2 = '_'
k3 = 1
k4 = "%Y-%m-%dT%H-%M-%S"

The keys k* are arbitrary. The only constraint is that they must be different inside the same (sub-)section.

Same configuration with a more compact writing:

[Video]
BW1 = ["dir/to/video", "*BW1*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"]
BW2 = ["dir/to/video", "*BW2*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"]

The brackets may be omitted:

[Video]
BW1 = "dir/to/video", "*BW1*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"
BW2 = "dir/to/video", "*BW2*.mp4", '_', 1, "%Y-%m-%dT%H-%M-%S"

The drawback of the compact writing is that it loses clarity for long lists as it is not allowed to span several lines for a single key (e.g. BW1).

Signal

See section Signal visualization for details about signal configuration. In a Python script, it is stored in a dictionary as in the following example:

signal_dict = {}

signal_dict["ECG"] = [
    ['dir/to/sig', "physio_*.h5", '_', 1, "%Y-%m-%dT%H-%M-%S", "ecg", 500, None],
    ['dir/to/sig', "physio_*.h5", '_', 1, "%Y-%m-%dT%H-%M-%S", "beat - TQRS", 0, {'pen': None, 'symbol': '+', 'symbolPen': 'r', 'symbolSize': 10}]
]

signal_dict["Respiration"] = [
    ['dir/to/sig', "physio_*.h5", '_', 1, "%Y-%m-%dT%H-%M-%S", "resp", "resp/freq", {'pen': {'color': 'm', 'width': 1}}]
]

There are two signal widgets (“ECG” and “Repsiration”), with two signals in the first one and one signal in the second one. In the configuration file, we create a section named “Signal”, composed of as much sub-sections as signal widgets. Each sub-section is composed of as much sub-sub-sections as signals in the corresponding signal widget. Here is the equivalent signal configuration:

[Signal]

[[ECG]]
[[[k0]]]
k0 = 'dir/to/sig'
k1 = 'physio_*.h5'
k2 = '_'
k3 = 1
k4 = '%Y-%m-%dT%H-%M-%S'
k5 = 'ecg'
k6 = 500
k7 = None
[[[k1]]]
k0 = 'dir/to/sig'
k1 = 'physio_*.h5'
k2 = '_'
k3 = 1
k4 = '%Y-%m-%dT%H-%M-%S'
k5 = 'tqrs'
k6 = 0
[[[[k7]]]]
pen = None
symbol = '+'
symbolPen = 'r'
symbolSize = 10

[[Respiration]]
[[[k0]]]
k0 = 'dir/to/sig'
k1 = 'physio_*.h5'
k2 = '_'
k3 = 1
k4 = '%Y-%m-%dT%H-%M-%S'
k5 = 'resp'
k6 = 'resp/freq'
[[[[k7]]]]
[[[[[pen]]]]]
color = 'm'
width = 1

Same configuration with a more compact writing:

[Signal]
ECG = [['dir/to/sig', 'physio_*.h5', '_', 1, '%Y-%m-%dT%H-%M-%S', 'ecg', '500', None], ['dir/to/sig', 'physio_*.h5', '_', 1, '%Y-%m-%dT%H-%M-%S', 'tqrs', 0, {'pen': None, 'symbol': '+', 'symbolPen': 'r', 'symbolSize': 10}]]
Respiration = [['dir/to/sig', 'physio_*.h5', '_', 1, '%Y-%m-%dT%H-%M-%S', 'resp', 'resp/freq', {'pen': {'color': 'm', 'width': 1}}]]

YRange

See section YRange for details about YRange configuration. In a Python script, it is stored in a dictionary as in the following example:

y_range_dict = {}
y_range_dict["ECG"] = (500, 1000)

In the configuration file, we create a section named “YRange”, composed of as much keys as signal widgets where to set the Y axis range. Here is the equivalent YRange configuration:

[YRange]
ECG = (500, 1000)

Threshold

See section Threshold values for details about threshold configuration. In a Python script, it is stored in a dictionary as in the following example:

threshold_dict = {}
threshold_dict["RR"] = [
    [600, (220, 0, 0)],
    [750, (178, 34, 34)]
]

In the configuration file, we create a section named “Threshold”, composed of as much sub-sections as threshold values. Here is the equivalent threshold configuration:

[Threshold]
[[RR]]
[[[k0]]]
k0 = 600
k1 = [220, 0, 0]
[[[k1]]]
k0 = 750
k1 = [178, 34, 34]

Same configuration with a more compact writing:

[Threshold]
[[RR]]
key_0 = [600, [220, 0, 0]]
key_1 = [750, [178, 34, 34]]

Interval

See section Temporal intervals for details about interval configuration. In a Python script, it is stored in a dictionary as in the following example:

interval_dict = {}
interval_dict["ECG"] = [
    ["dir/to/interval", "I0_*.txt", '_', 0, '%Y%m%dT%H%M%S', "", 500, (0, 255, 0, 50)],
    ["dir/to/interval", "I1_*.txt", '_', 0, '%Y%m%dT%H%M%S', "", 500, (255, 200, 0, 50)]
]

Intervals must be plotted only the signal widget “ECG” with two interval types. In the configuration file, we create a section named “Interval”, composed of as much sub-sections as signal widgets on which to plot intervals. Each sub-section is composed of as much sub-sub-sections as interval types to plot on the corresponding signal widget. Here is the equivalent interval configuration:

[Interval]
[[ECG]]
[[[k0]]]
k0 = "dir/to/interval"
k1 = "I0_*.txt"
k2 = '_'
k3 = 0
k4 = '%Y%m%dT%H%M%S'
k5 = ''
k6 = 500
k7 = [0, 255, 0, 50]
[[[k1]]]
k0 = "dir/to/interval"
k1 = "I1_*.txt"
k2 = '_'
k3 = 0
k4 = '%Y%m%dT%H%M%S'
k5 = ''
k6 = 500
k7 = [255, 200, 0, 50]

Same configuration with a more compact writing:

[Interval]
ECG = [["dir/to/interval", "I0_*.txt", '_', 0, '%Y%m%dT%H%M%S', "", 500, [0, 255, 0, 50]], ["dir/to/interval", "I1_*.txt", '_', 0, '%Y%m%dT%H%M%S', "", 500, [255, 200, 0, 50]]]

Events annotation

See section Events annotation tool for details about events annotation configuration. In a Python script, it is stored in a dictionary as in the following example:

annotevent_dict = {}
annotevent_dict["Label-1"] = [200, 105, 0, 50]
annotevent_dict["Label-2"] = [105, 205, 0, 50]

In the configuration file, we create a section named “AnnotEvent”, composed of as much sub-sections as labels. Here is the equivalent events annotation configuration:

[AnnotEvent]
[[Label-1]]
k0 = 200
k1 = 105
k2 = 0
k3 = 50
[[Label-2]]
k0 = 105
k1 = 205
k2 = 0
k3 = 50

Same configuration with a more compact writing:

[AnnotEvent]
Label-1 = [200, 105, 0, 50]
Label-2 = [105, 205, 0, 50]

Image extraction

See section Image extraction tool for details about image extraction configuration. In a Python script, it is stored in a list as in the following example:

annotimage_list = ["Label-A", "Label-B", "Label-C"]

In the configuration file, we create a section named “AnnotImage”:

[AnnotImage]
k0 = "Label-A"
k1 = "Label-B"
k2 = "Label-C"

We must keep the dictionary structure because of the structure of the class Configuration. Nevertheless, it is converted to a list inside ViSiAnnoT.

General

In a Python script, the general configuration is specified with the keyword arguments of ViSiAnnoTLongRec and ViSiAnnoT. In the configuration file, we create a section named “General” as in the following example:

[General]
flag_synchro = False
flag_pause_status = True
layout_mode = 2
zoom_factor = 2
max_points = 5000
nb_ticks = 10
trunc_duration = [0, 0]
time_zone = 'Europe/Paris'
annot_dir = 'Annotations'
from_cursor_list = [[0, 20], [0, 40], [1, 0]]
ticks_size = 12
ticks_color = [93, 91, 89]
ticks_offset = 5
font_name = 'Times'
font_size = 12
font_size_title = 16
font_color = [0, 0, 0]
nb_table_annot = 3
bg_color = [244, 244, 244]
bg_color_plot = [255, 255, 255]
height_widget_signal = 150
flag_annot_overlap = False
current_fmt = '%Y-%m-%dT%H:%M:%S.%s'
range_fmt = '%H:%M:%S.%s'
ticks_fmt = '%H:%M:%S.%s'
y_ticks_width = 30

If a key is not specified in the configuration file, then the keyword argument takes the default value of ViSiAnnoT constructor.

Configuration with the graphical user interface

This configuration tool only manages long recordings (see section Management of long recording) and is composed of six parts: video, signal, events annotation, image extraction, general and configuration file management. On the one hand, the user sets up manually the configuration by filling in the fields in the window. On the other hand, the tool can automatically convert the values filled in the window to a configuration file complying with the Configobj package. It also handles the inverse operation, so that the user can save and load custom configurations.

Video

The video configuration is contained in the first group box named “Video”.

The user must click on the push button “Add” in order to create a new video configuration, corresponding to a new camera. Once a video configuration is added, there are 5 fields to fill in:

  • Directory where to find the video files,

  • Pattern to find the video files,

  • Delimiter to get the beginning datetime in the video file name,

  • Position of the beginning datetime in the video file name, according to the delimiter,

  • Format of the beginning datetime in the video file name ("posix" or format compliant with datetime, see https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes).

Fig. 19 shows an example of video configuration with three cameras that would give a display similar to Fig. 2.

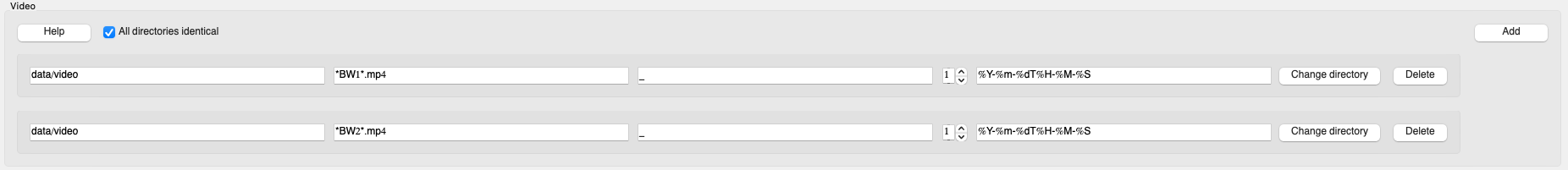

_images/configuration_video.png

Fig. 19 Example of video configuration

The “Help” push buttons displays a window with a description of each field.

Signal

The signal configuration is contained in the second group box named “Signal”.

The user must click on the push button “Add” in order to create a new signal configuration. Then, in order to have multiple signals on the same plot, he must click on the push button “Add sub” located next to the signal configuration. Once a signal configuration is added, there are 9 fields to fill in:

  • Signal widget ID (used as the Y axis label on the plot)

  • Directory where to find the signal files,

  • Pattern to find the signal files,

  • Delimiter to get the beginning datetime in the signal file name,

  • Position of the beginning datetime in the signal file name, according to the delimiter,

  • Format of the beginning datetime in the signal file name ("posix" or format compliant with datetime, see https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes),

  • Key to access the data in the file (in case of .h5 or .mat, set it to '' otherwise), also used a legend - in case of 2D data with several value columns, then the column index must be specified, e.g. "key - 1" or "key - colName" if there is an attribute at key named columns with columns name being comma-separated (first column is always the timestamps),

  • Signal frequency (may also be a string with path to the frequency attribute in case of h5 file), set it to 0 in case of non-regularly sampled signal,

  • Dictionary with plot style.

Fig. 20 shows an example of signal configuration with two plots and three signals. The first widget (resp. second one) contains two signals plots (resp. one signal plot) and would give a display similar to Fig. 3 and Fig. 5.

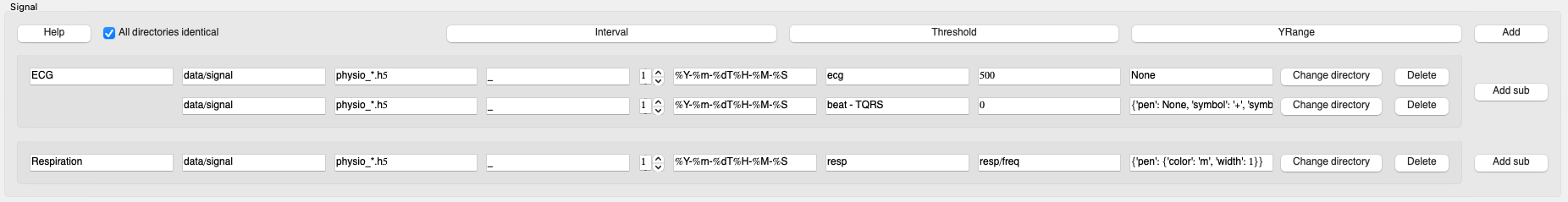

_images/configuration_signal.png

Fig. 20 Example of signal configuration

Fig. 21 shows an example of audio signal configuration with a plot for each channel. The first plot (resp. second one) contains the left channel (resp. right channel).

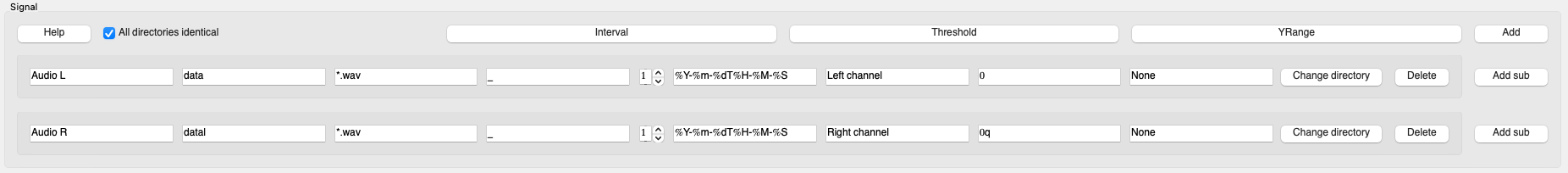

_images/configuration_audio.png

Fig. 21 Example of audio signal configuration

YRange

The user can manage the YRange configuration by clicking on the push button “YRange” located above the signal configuration. This opens a new window illustrated in figure Fig. 22. The push button “Add” allows to add a YRange configuration that is automatically linked to an existing signal widget.

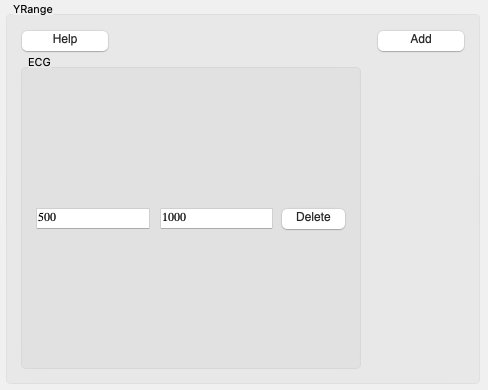

_images/configuration_yrange.png

Fig. 22 Example of YRange configuration

Threshold

The user can manage the threshold configuration by clicking on the push button “Threshold” located above the signal configuration. This opens a new window illustrated in figure Fig. 23. The push button “Add” allows to add a threshold configuration that is automatically linked to an existing signal configuration thanks to the signal widget ID. Several thresholds can be added to one signal widget with the push button “Add sub”.

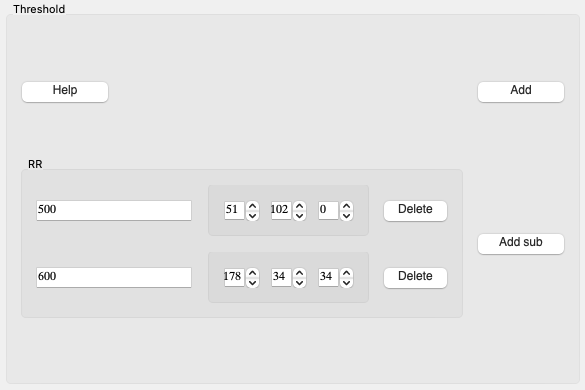

_images/configuration_threshold.png

Fig. 23 Example of threshold configuration

Once a threshold configuration is added, there are 2 fields to fill in:

  • Value of the threshold,

  • Color of the threshold line (RGBA).

If we combine this threshold configuration with the second signal configuration of Fig. 20, this would give a display similar to Fig. 6.

Interval

Similarly to the threshold configuration, the user can manage the interval configuration by clicking on the push button “Interval” located above the signal configurations. This opens a new window, illustrated in figure Fig. 24.

Once an interval configuration is added, there are 8 fields to fill in:

  • Directory where to find the intervals files,

  • Pattern to find the intervals files,

  • Delimiter to get the beginning datetime in the signal file name,

  • Position of the beginning datetime in the signal file name, according to the delimiter,

  • Format of the beginning datetime in the signal file name ("posix" or format compliant with datetime, see https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes),

  • Key to access the data in the file (in case of .h5 or .mat, set it to '' otherwise),

  • Frequency (in case of a time series, may also be a string with path to the frequency attribute in case of h5 file),

  • Color of the interval (RGBA).

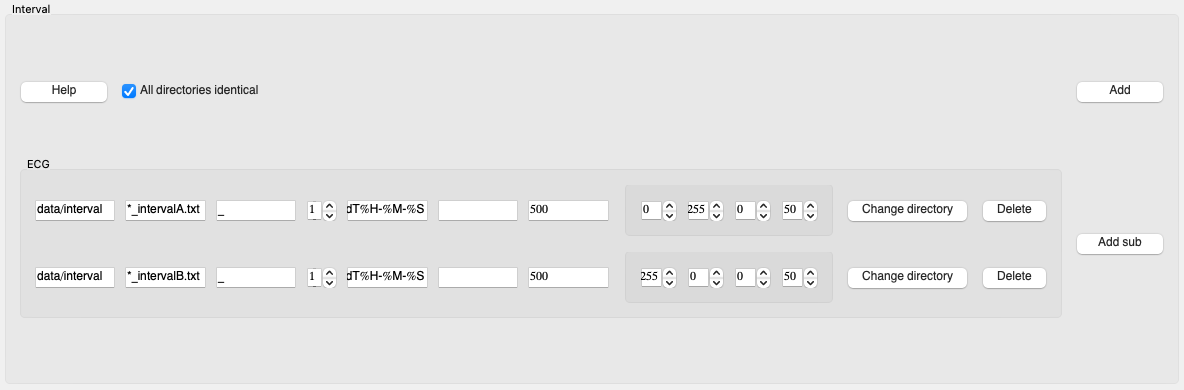

_images/configuration_interval.png

Fig. 24 Example of intervals configuration

If we combine this interval configuration with the first signal configuration in Fig. 20, this would give a display similar to figure Fig. 7.

Events annotation

The events annotation configuration is contained in the third group box named “AnnotEvent”. Figure Fig. 25 shows an example.

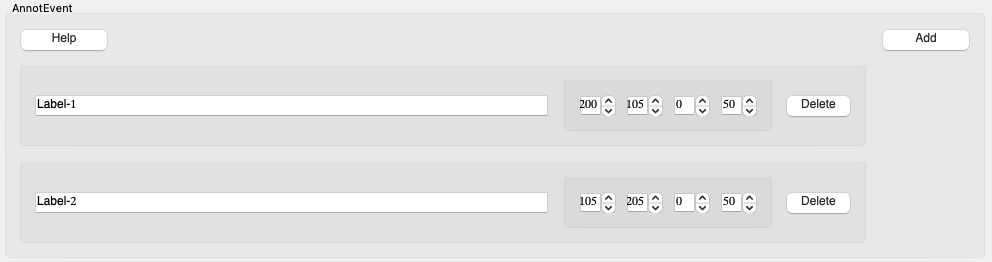

_images/configuration_annotevent.png

Fig. 25 Screenshot of the events annotation configuration

The user must click on the push button “Add” in order to create a new annotation configuration, corresponding to a new label. Once an annotation configuration is added, there are two fields to fill in:

  • Annotation label

  • Color for plotting

Image extraction

The image extraction configuration is contained in the fourth group box named “AnnotImage”. Figure Fig. 26 shows an example.

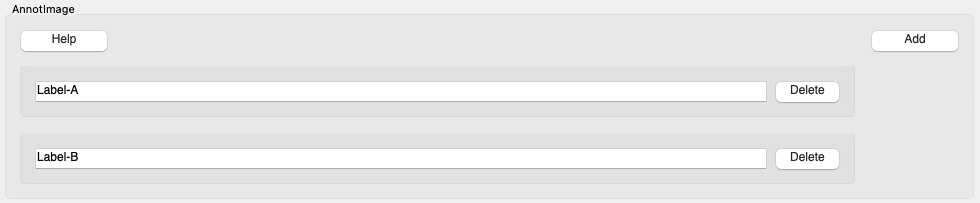

_images/configuration_annotimage.png

Fig. 26 Screenshot of the image annotation configuration

The user must click on the push button “Add” in order to create a new annotation configuration, corresponding to a new label. Once an annotation configuration is added, there is one field to fill in: annotation label.

General

The general configuration is contained in the fifth group box named “General”. Figure Fig. 27 shows an example with default values.

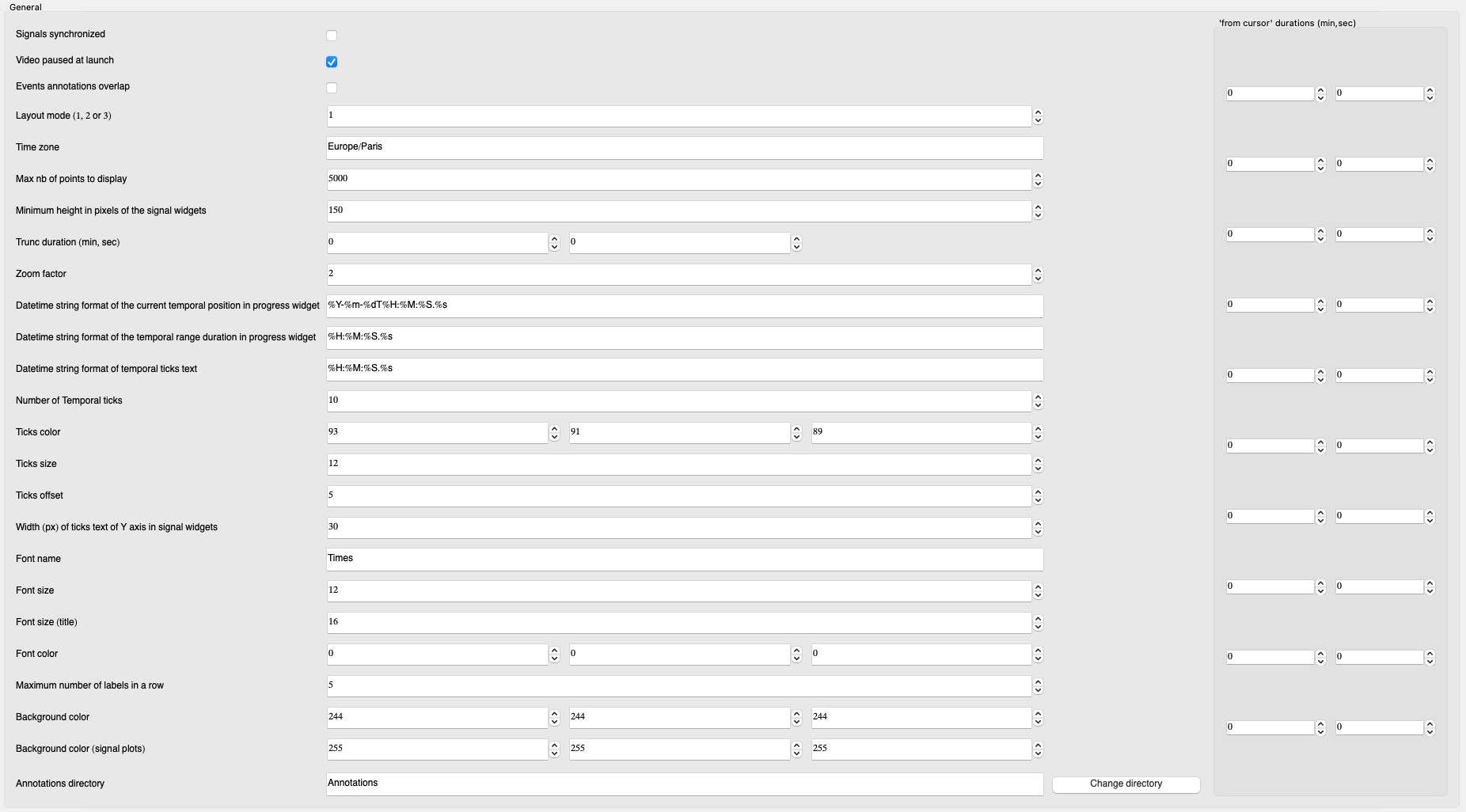

_images/configuration_general.png

Fig. 27 Screenshot of the general configuration

The “Signals synchronized” check box specifies if the the signals are synchronized with video or synchronized with each other if there is no video.

The “Video paused to launch” check box specifies if the video must be in pause mode when launching the software.

The “Events annotations overlap” check box specifies if the overlap of events annotations is enabled.

The “Layout mode” spin box specifies the layout mode (see Fig. 8).

The “Time zone” line edit specifies the time zone that is used for date-time comparison.

The “Max nb of points to display” spin box specifies the maximum number of signal samples that are plotted. For a given temporal range, if the number of signal samples contained in this range is above the maximum number, then we simply skip samples so that we reach the maximum number.

The “Minimum height in pixels of the signal widgets” spin box specifies the vertical size of the signal widgets in the scroll area in case it exceeds the size of the window.

The “Trunc duration” spin boxes specifies the truncation duration (see section Tools for fast navigation).

The “Zoom factor” spin box specifies the zoom factor when zooming in/out around the temporal cursor.

The “Temporal ticks nb” spin box specifies the number of ticks on the X axis of the signal plots.

The “Ticks color” spin boxes specify the color of the ticks.

The “Ticks size” spin box specifies the font size of the ticks text.

The “Ticks offset” spin box specifies the space in pixels between the ticks and the associated text.

The “Font name” line edit specifies the font of the text in ViSiAnnoT.

The “Font size” spin box specifies the font size.

The “Font size” spin box specifies the font size for the title of the video widgets and the progression bar widget.

The “Font color” spin boxes specify the font color.

The “Maximum number of labels in a row” spin box specifies the maximum number of labels to put in a row in the widgets of events annotation and image annotation.

The “Background color” spin boxes specify the background color of ViSiAnnoT window.

The “Background color (signal plot)” spin boxes specify the background color of ViSiAnnoT plots.

The “Annotations directory” line edit specifies the directory where to save the annotations (both events and image extraction). Make sure to change this directory when switching to another recording.

The “from cursor durations” spin boxes table specifies the list of temporal range durations for defining a new temporal range beginning at the current temporal cursor (see section Tools for fast navigation).

Customization

It is possible to call a function to automatically update the configuration before launching the GUIs:

$ python3 -m visiannot -c path/to/config.ini -n -u visiannot.configuration.update.update_data_and_annotations_directory

The option -c specifies the path to the configuration file to load. The option -n disables configuration GUI. With the option -u, we give the path to a function in visiannot package that updates the loaded configuration dictionary. The update function may be in a module that is not in a package (moduleName.functionName). It must have one positional argument (path to the configuration file) and must return the updated configuration dictionary.

Let’s give an example to illustrate the effect of the configuration update function. We have a dataset organized as follows:

|__ DATA
    |__ Subject01
        |__ Subject01_2021-01-01T00-00-00
            |__ Subject01_vid_2021-01-01T00-00-00.mp4
            |__ Subject01_vid_2021-01-01T00-30-00.mp4
            |__ Subject01_sig_2021-01-01T00-00-30.h5
            |__ Subject01_sig_2021-01-01T00-30-30.h5
        |__ Subject01_2021-02-01T00-00-00
            |__ Subject01_vid_2021-02-01T00-00-00.mp4
            |__ Subject01_vid_2021-02-01T00-30-00.mp4
            |__ Subject01_sig_2021-02-01T00-00-30.h5
            |__ Subject01_sig_2021-02-01T00-30-30.h5
    |__ Subject02
        |__ Subject02_2021-01-03T01-00-00
            |__ Subject02_vid_2021-01-03T01-00-00.mp4
            |__ Subject02_vid_2021-01-03T01-30-00.mp4
            |__ Subject02_sig_2021-01-03T01-00-30.h5
            |__ Subject02_sig_2021-01-03T01-30-30.h5
        |__ Subject02_2021-02-03T01-00-00
            |__ Subject02_vid_2021-02-03T01-00-00.mp4
            |__ Subject02_vid_2021-02-03T01-30-00.mp4
            |__ Subject02_sig_2021-02-03T01-00-30.h5
            |__ Subject02_sig_2021-02-03T01-30-30.h5

There is a folder for each subject, with a sub-folder for each recording. A recording is made up of two video files and two signal files that are not synchronized.

We want the annotations to be stored as follows (two labels, “Label1” and “Label2”):

|__ Annnotations
    |__ Subject01
        |__ Subject01_2021-01-01T00-00-00
            |__ Subject01_2021-01-01T00-00-00_Label1-datetime.txt
            |__ Subject01_2021-01-01T00-00-00_Label2-datetime.txt
    |__ Subject02
        |__ Subject02_2021-01-03T01-00-00
            |__ Subject02_2021-01-03T01-00-00_Label1-datetime.txt
            |__ Subject02_2021-01-03T01-00-00_Label2-datetime.txt

When we change subject and/or recording, we need to update the following fields in the configuration file (see User guide: configuration):

  • First field of each video configuration (directory where to find video files),

  • First field of each signal configuration (directory where to find signal files),

  • Field annot_dir in the section General.

Thanks to the option -u, it is possible to automate this process of configuration update. When running the command above, the function update_data_and_annotations_directory() is called before launching the GUIs. It runs the following steps:

  • Load the configuration file as a dictionary,

  • Open a dialog window for selecting a recording folder (e.g. “DATA/Subject02/Subject02_2021-01-03T01-00-00”),

  • Update first field of each video configuration in the configuration dictionary with the selected directory,

  • Update first field of each signal configuration in the configuration dictionary with the selected directory,

  • Get the annotation directory defined as annotDirBase/patID/recName, where annotDirBase is the initial value of the annotation directory in the configuration file, recName is the basename of the selected directory (e.g. “Subject02_2021-01-03T01-00-00”) and patID is the patient ID (e.g. “Subject02”),

  • Update the field annot_dir in the section General of the configuration dictionary with the new annotation directory.

In order to have the dialog window to open at particular location at launch, it is possible to add the key data_dir_base in the section General of the configuration file.

NB: only the configuration dictionary is updated in the function, the configuration file remains unchanged, implying that it is not needed to reset the value of annot_dir in the configuration file after each launch.
